Die Casting Machine

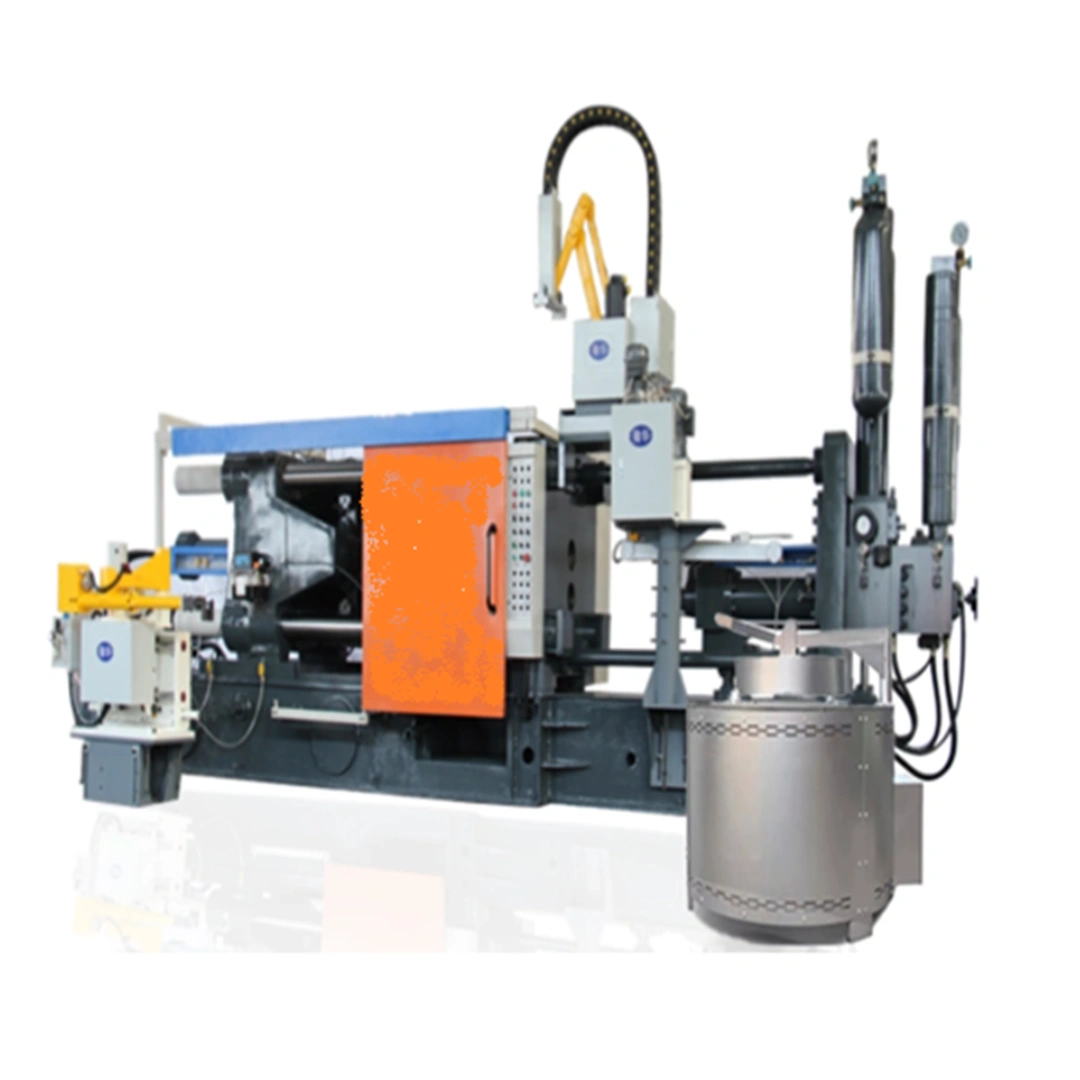

Our company is involved in manufacturing and supplying a wide array of die-casting machines ranging from 10 tons to 250 tons. The comprehensive assortment incluIndia a vertical die casting machine, a tiltable gravity die casting machine, a rotor die casting machine, and a horizontal pressure die casting machine.

MACHINE DETAILS:

• Die locking is effected by means of a hydraulic and sturdy toggle mechanism exerting an evenly distributed force over the faces of the dies. The die space between the two die-mounting plates is adjustable to suit any die thickness, as mentioned in the table. The die-locking mechanism is four hard chrome-plated tie bars running on linear bushes for smooth movement of the movable die, and a water-cooling arrangement for the die plate & fixed platen is provided.

• Injection plunger is hydraulically operated and powered with a high-pressure accumulator to give a fast sequence of shots. The provision of lower injection and central injection is provided

• A separate ejection cylinder for ejecting the casting from the die cavity has been provided.

• A shell and tube type condenser is provided to prevent the overheating of oil and mold. It can be cleaned very easily after removing both the side covers.

• The hydraulic system consists of a double-vane pump, relief valve, flow control valve, accumulator unloading valve, and solenoid-operated direction control valves. All controls are fitted on single manifold to avoid complicated tubing

• All electricals consist of standard makes; switchgear, relays, contractors, etc. are housed in a central metal cabinet. An operating control box (mounted on the fixed die plate) located at the operating position ensures full safety of operation. An emergency stop switch is also provided to ensure instantaneous stopping of all motion in case of need.
