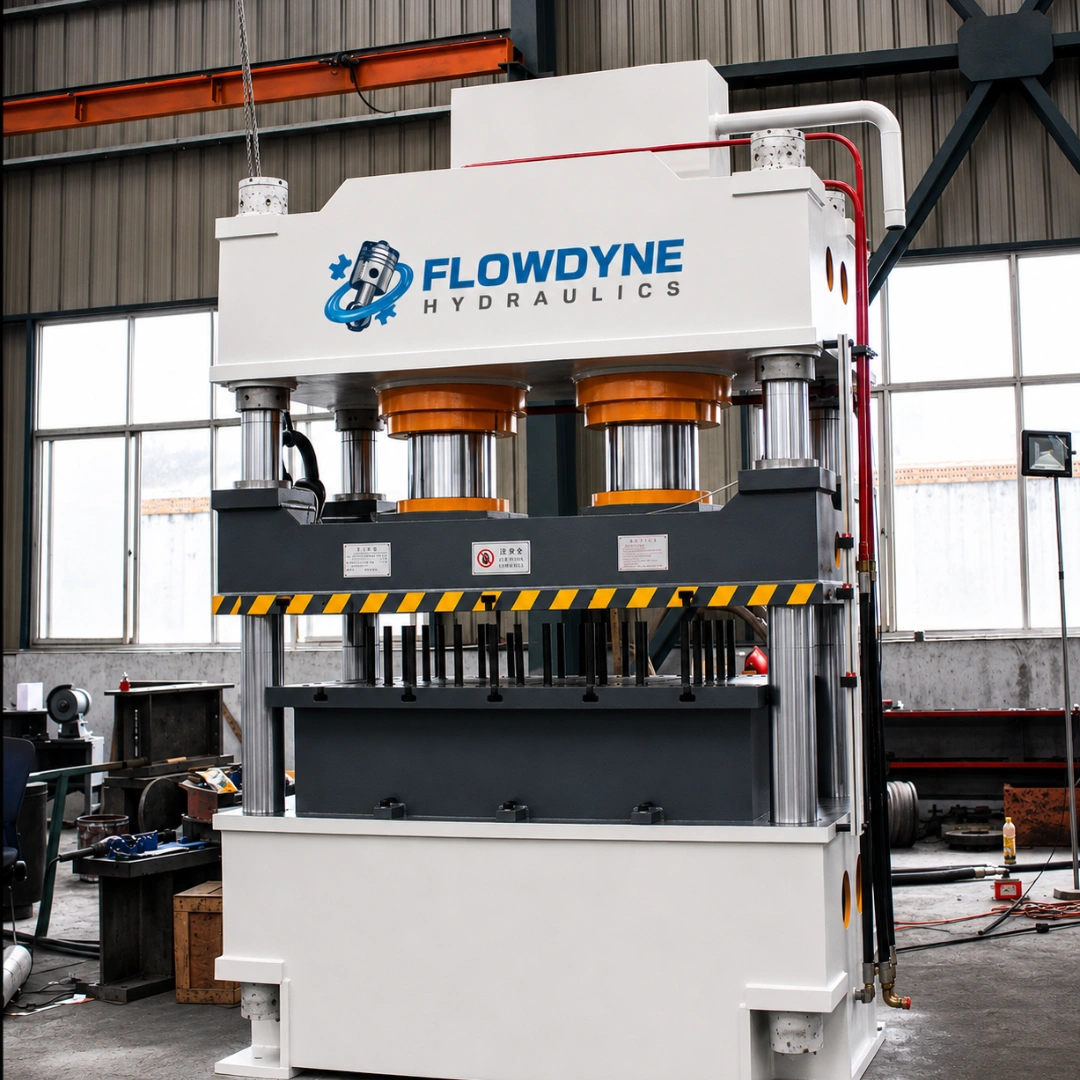

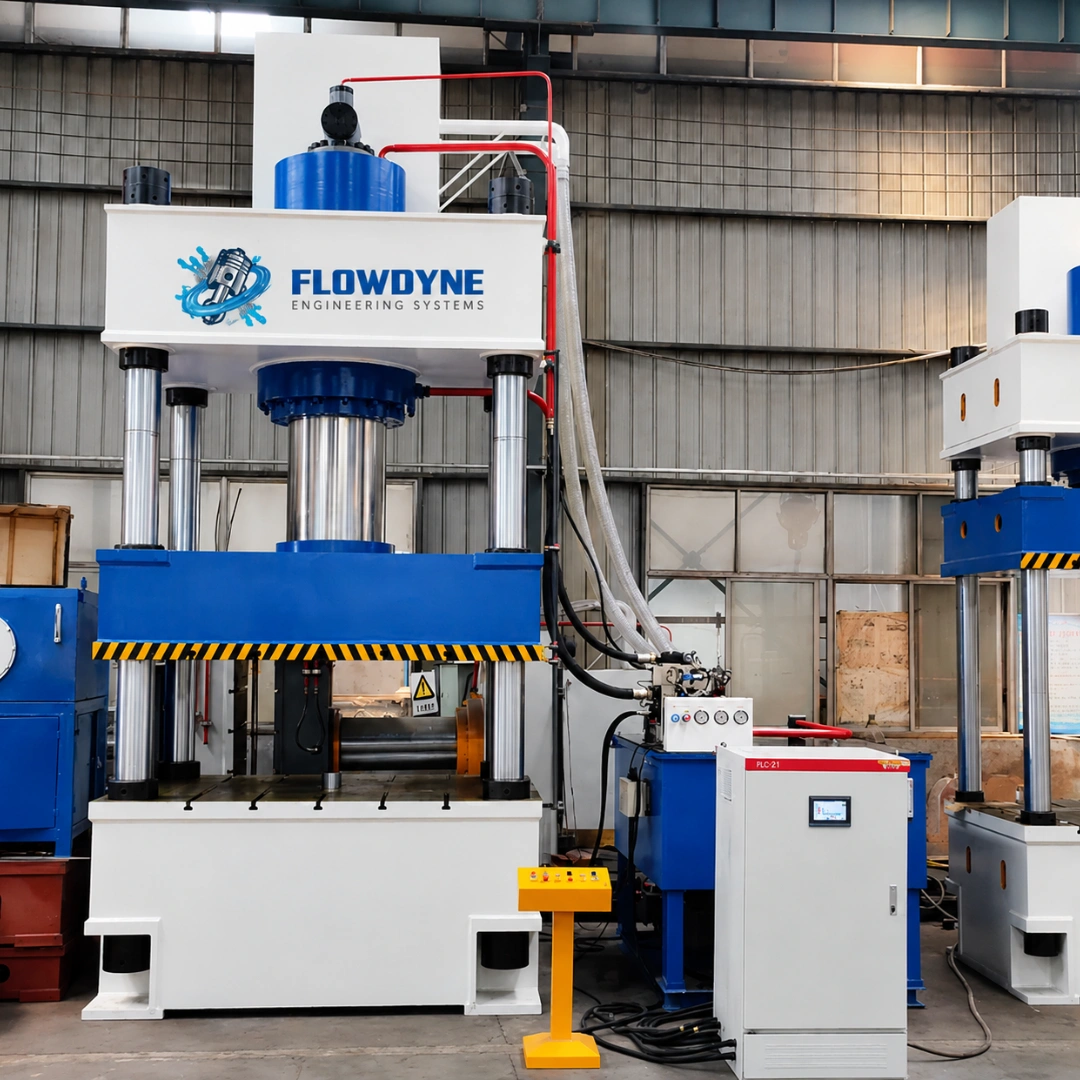

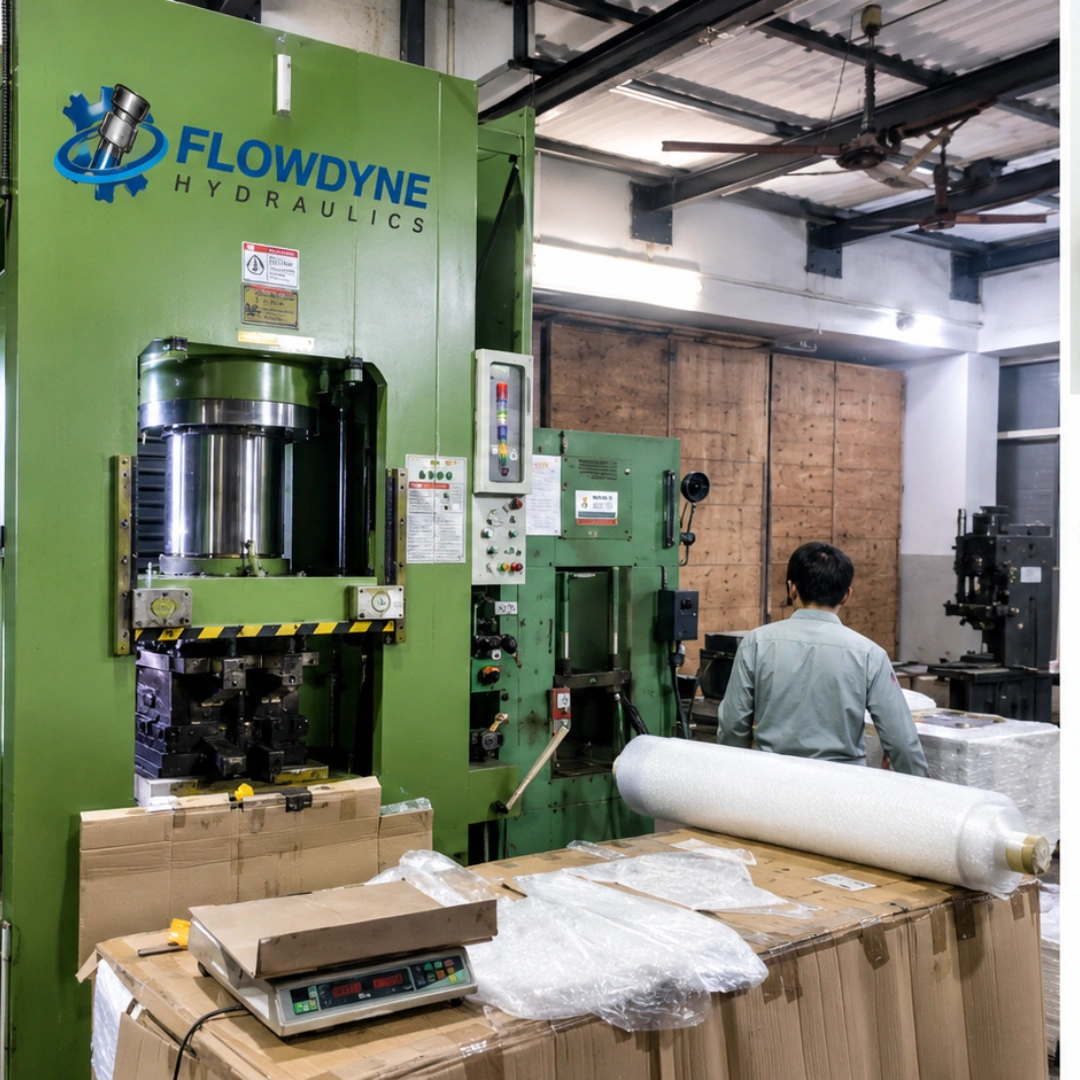

Hydraulic Compression Machine for Composite
We are also the leading hydraulic machine manufacturers for composite materials also known as DOUGH MOULDING COMPOUND (DMC), SHEET MOULDING COMPOUND (SMC), and FRP products.
MACHINE DETAILS:
- These compression machines are available in either pillar-guided or framed.
- The compression machine is provided with an injector (at the bottom or top) to eject the final DMC and SMC products from the mold.
Benefits of FRP Products
- High Load Rating and Strength
- Anti-theft and safety solutions
- Durability and long service life
- Light in weight
- Low carbon Footprint
.webp)
.webp)
.webp)
AVAILABILITY AND ITS SPECIFICATION :
|
Machine model |
Capacity (tons) |
Main piston dia(mm) |
PLATEN SIZE (mm) |
Daylight (mm) |
Stroke(mm) |
Motor(HP) |
|
|
UHCMI-10 |
100 |
300 |
625x475 |
400 |
350 |
7.5 |
Send inquiry |
|
UHCMI-20 |
150 |
350 |
700x600 |
400 |
350 |
7.5 |
Send inquiry |
|
UHCMI-30 |
200 |
400 |
700x700 |
450 |
400 |
10 |
Send inquiry |
|
UHCMI-40 |
250 |
450 |
800x750 |
450 |
400 |
10 |
Send inquiry |
|
UHCMI-50 |
400 |
550 |
1000X1000 |
600 |
550 |
12.5 |
SEND INQUIRY |
|
UHCMI-60 |
600 |
650 |
1150X1150 |
650 |
600 |
15 |
SEND INQUIRY |

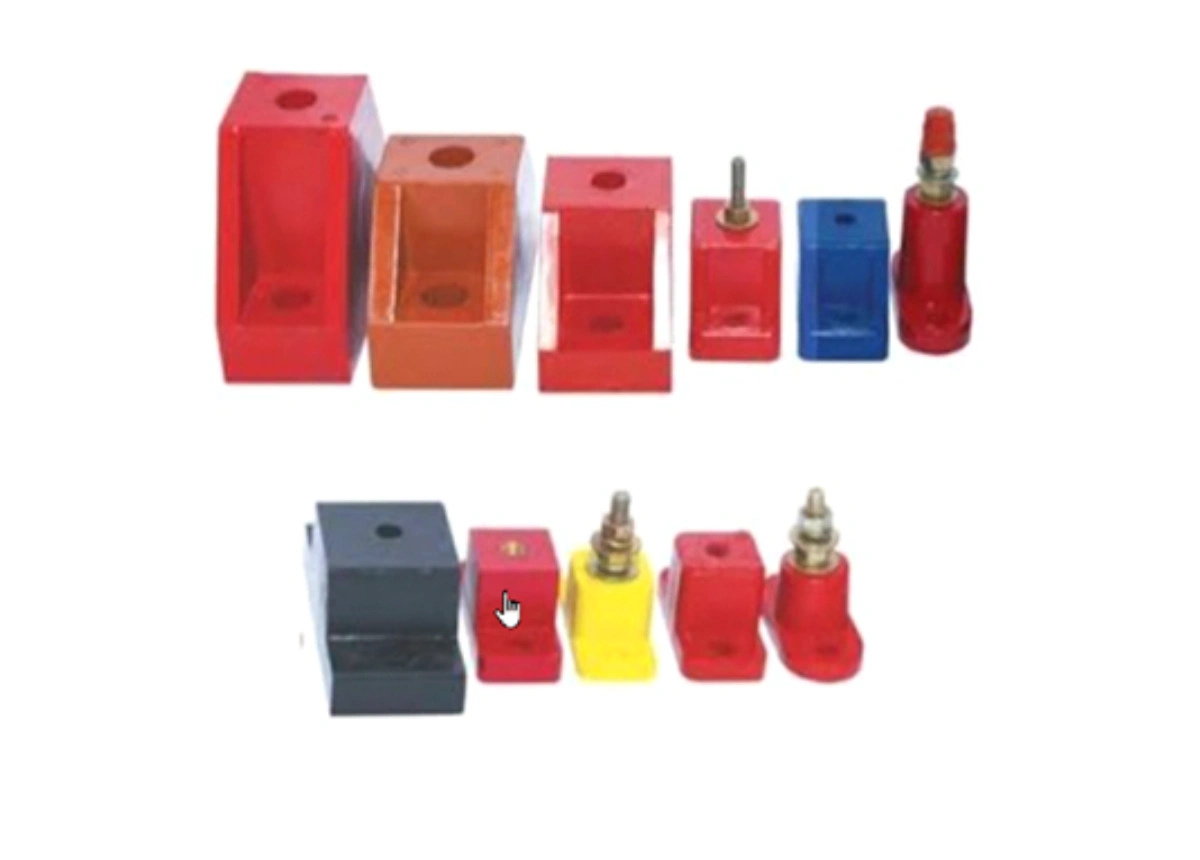

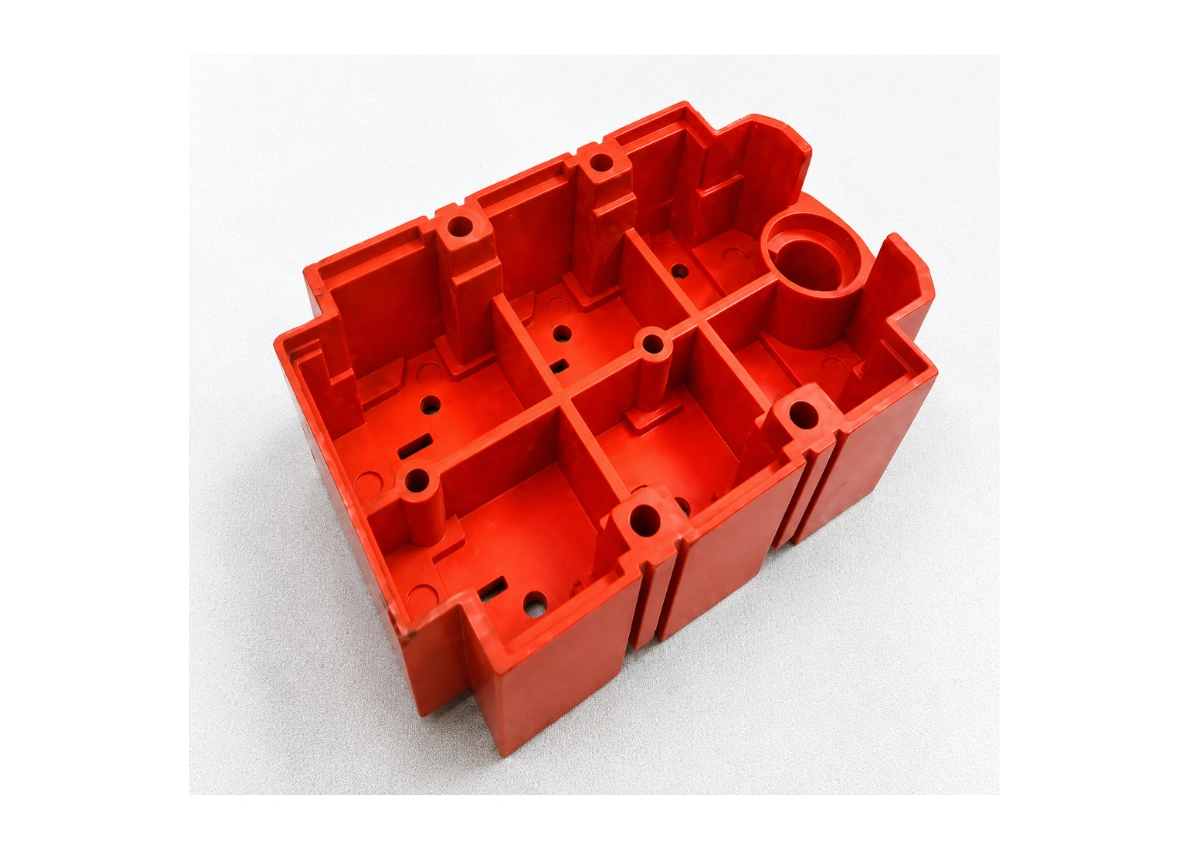

ELECTRICAL INDUSTRY
Composite compounds are reactive molding materials made primarily of unsaturated polyester resin, glass fiber, and fillers. These are known as dough moulding compound (DMC) and sheet moulding compound (SMC) and are used for making various items in the electrical industry.
These are put inside the die of the machine and then pressed to the required pressure to get an electrical item. They form into solid components of desired sizes, shapes, and properties on application of heat and pressure in a matched die mold.
.webp)

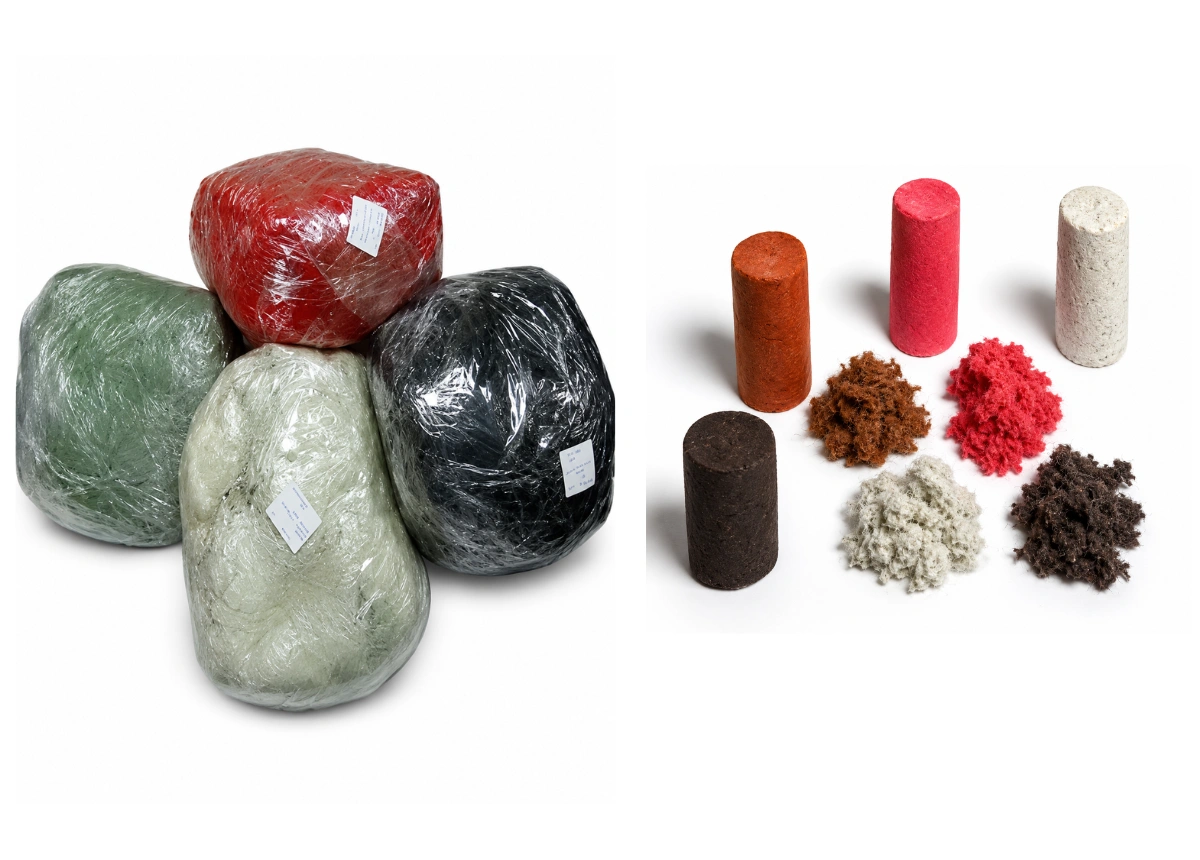

DOUGH MOLD COMPOUND (DMC)
.webp)
.webp)
.webp)
